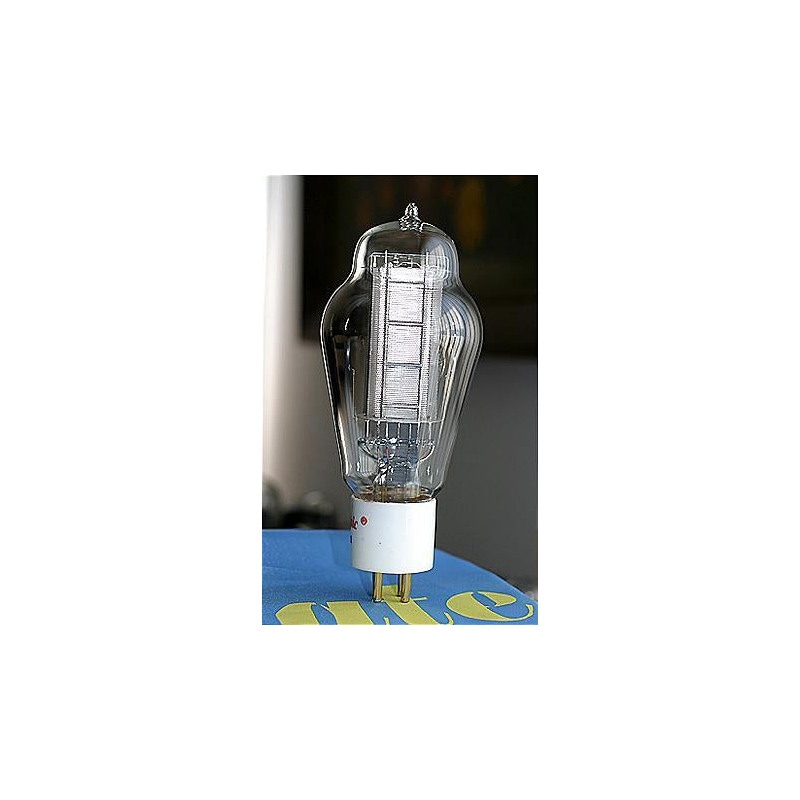

PX25
Triode · DHT · UX-4 · 1933
“British DHT aristocrat.”
High-power directly-heated triode for single-ended amplification
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN5%
POWER63%
DRIVE98%
LINEARITY95%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The PX25 is a British directly-heated power triode developed by Marconi-Osram (GEC/MOV) in the 1930s, delivering about 6-8W in single-ended Class A. It combines the tonal refinement of a 2A3 with greater power and a distinctly British midrange character that is lush without being syrupy. The tube's relatively low mu (~3.8) and low plate resistance make it very easy to drive but demanding of the output transformer. Original GEC PX25s are among the rarest and most expensive NOS audio tubes; current production from KR Audio and EML provide modern alternatives.
APPLICATIONS
SET outputPush-pull outputHeadphone output
Generic triode power (set) stage
• Hi-Fi stereo• Headphone amp
HISTORY
Introduced1933ManufacturerOsramEquivalentsDA60
Pre-WarSPECIFICATIONS
Heater Voltage4V
Heater Current2A
Max Plate Voltage400V
Max Power25W
Sensitivity3 mA/V
Gain Factor4.7
Internal Impedance1.6kΩ
PinoutUX-4
Era1933
RarityLegendary
CLASSIC CIRCUITS
PX25 SE Classic400V · SE
