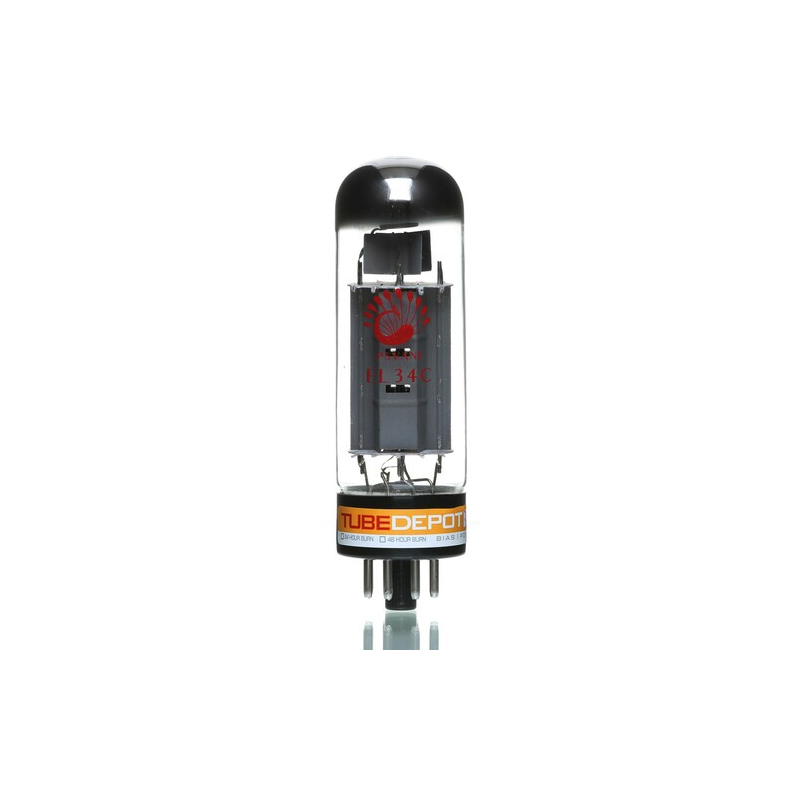

EL34

Pentode · IHT · Octal · 1953

British voice. Marshall tone.

Power pentode delivering up to 25W in pentode, UL, or triode mode

Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER63%
DRIVE50%
LINEARITY75%
HEATER6.3V / 1.5A
MAX PLATE800V / 25W
BASEoctal
EXECUTIVE SUMMARY

The EL34 (6CA7) is a power pentode that defines the sound of British high-fidelity and guitar amplification, from Marshall to Mullard. In pentode mode it delivers 25W per pair in push-pull, with a rich, harmonically complex midrange that distinguishes it from the more linear American 6L6 family. The EL34's strong second and third harmonic content gives it a musicality and vocal-like quality that has made it the default output tube in European hi-fi amplifiers for decades. Mullard Blackburn production, Siemens, and Telefunken are the benchmark NOS types; current production from JJ, Tung-Sol (New Sensor), and Shuguang varies significantly in character.

APPLICATIONS
Power output
Marshall JTM45/JCM800Dynaco Mark IIIMullard 5-20
Guitar amp
HISTORY
Introduced1953ManufacturerMullard·PhilipsEquivalents6CA7
Golden Age
SPECIFICATIONS
Heater Voltage6.3V
Heater Current1.5A
Max Plate Voltage800V
Max Power25W
Sensitivity11 mA/V
Gain Factor
Internal Impedance
PinoutOctal
Era1953
RarityCommon
PDF

EL34 Datasheet

Frank's Electron Tube Pages · PDF

CLASSIC CIRCUITS
Mullard 5-20425V · PP
Marantz 8B410V · PP
