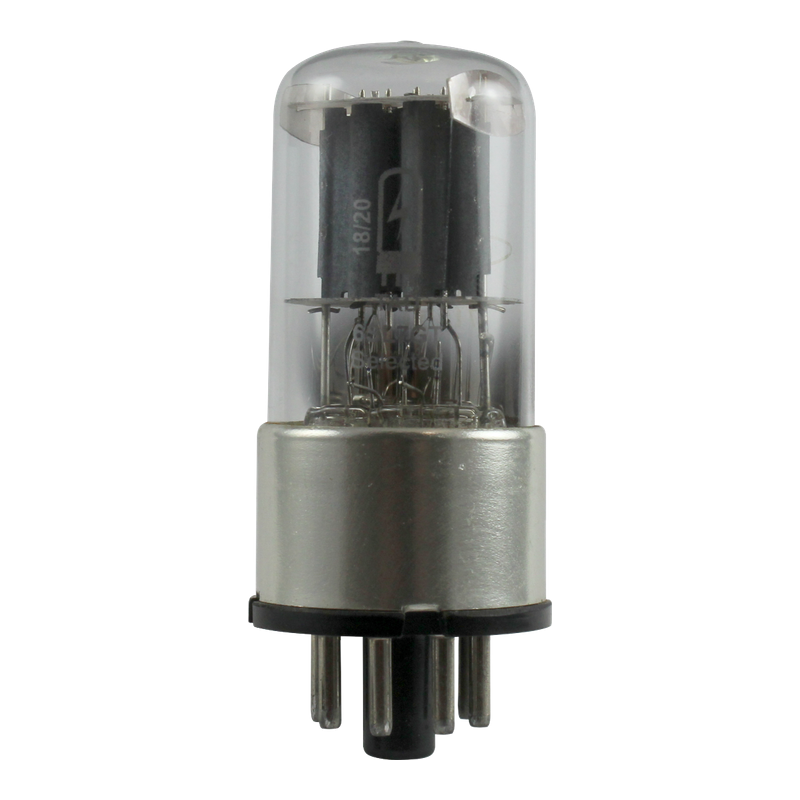

6SL7
Dual Triode · IHT · Octal · 1941
“Silky, dark.”
Medium-gain dual triode for voltage amplification applications
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN70%
POWER3%
DRIVE56%
LINEARITY65%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 6SL7 is the high-mu (mu ~70) companion to the 6SN7, sharing the same octal envelope but with higher gain and higher plate resistance (~44k ohms). It was widely used as a voltage amplifier and phase inverter in 1940s-50s amplifiers and fills a role similar to the 12AX7 but with the sonic advantages of the larger octal bottle construction. Its higher plate resistance compared to the 6SN7 makes it less suitable for driving loads but excellent as a first-stage gain element. RCA grey-glass and Sylvania versions are well-regarded NOS options, though availability has become increasingly scarce.
APPLICATIONS
Voltage amplifierHigh-gain preampPhase splitter
RCA BA-1A preamp
• Hi-Fi stereo• Headphone amp• Studio/recording
HISTORY
Introduced1941ManufacturerRCA·SylvaniaEquivalents5691, CV1985
Pre-WarSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.3A
Max Plate Voltage300V
Max Power1W
Sensitivity1.6 mA/V
Gain Factor70
Internal Impedance44.0kΩ
PinoutOctal
Era1941
RarityModerate
CLASSIC CIRCUITS
6SL7 Driver Stage250V · SE
