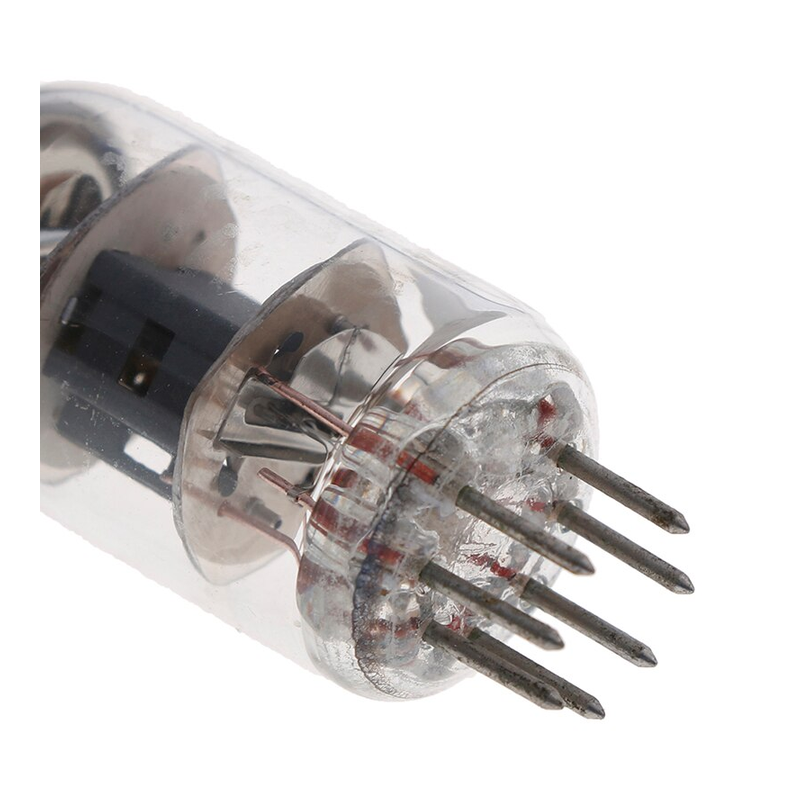

6J1

Pentode · IHT · 9-pin Noval · 1960

“Russian RF pentode.”

Small-signal pentode for low-noise voltage amplification

TRANSCONDUCTANCE0mA/V

GAIN0%

POWER5%

DRIVE50%

LINEARITY75%

HEATER6.3V / 0.18A

MAX PLATE250V / 1.8W

BASEnoval

EXECUTIVE SUMMARY

The 6J1 is a indirectly-heated pentode from Russian, introduced around 1960. Commonly used in rf / preamp applications. Russian RF pentode.

APPLICATIONS

Voltage amplifier

Generic pentode rf / preamp stage

HISTORY

Introduced1960ManufacturerRussianEquivalentsEF95

Late Production

SPECIFICATIONS

Heater Voltage6.3V

Heater Current0.18A

Max Plate Voltage250V

Max Power1.8W

Sensitivity5 mA/V

Gain Factor—

Internal Impedance—

Pinout9-pin Noval

Era1960

RarityCommon

6J1 Datasheet

Frank's Electron Tube Pages · PDF
