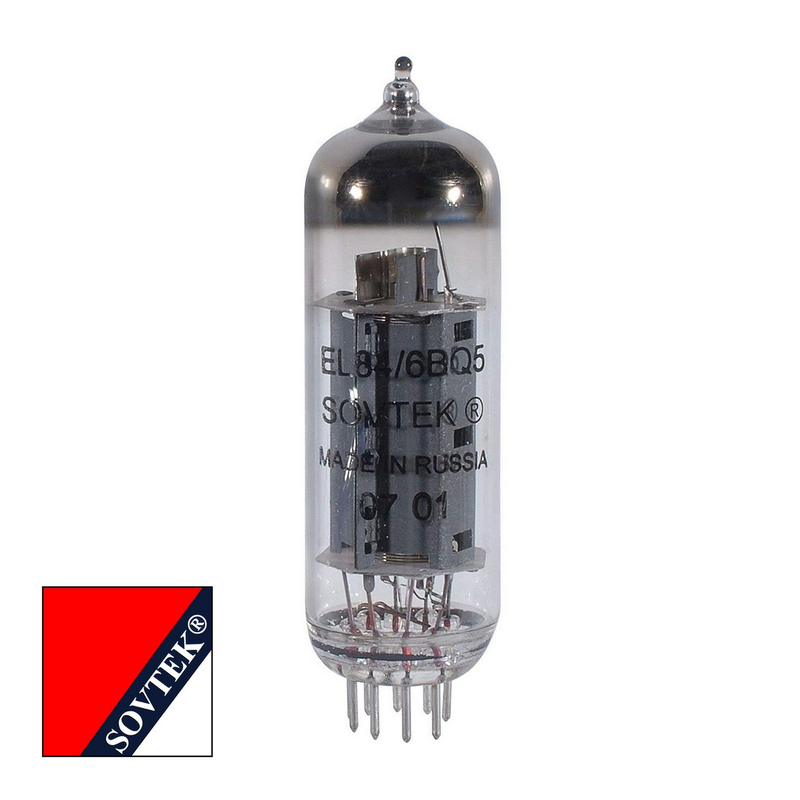

6BQ5
Tetrode · IHT · 9-pin Noval · 1953
“American EL84.”
Beam power tetrode rated at 12W for high-power output stages
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER30%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6BQ5 is a indirectly-heated beam tetrode from Amperex, introduced around 1953. Commonly used in power (pp/se) applications. American EL84.
VS EL84
Pd 0%Full comparison →
HISTORY
Introduced1953ManufacturerAmperexEquivalentsEL84
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.76A
Max Plate Voltage300V
Max Power12W
Sensitivity11 mA/V
Gain Factor—
Internal Impedance—
Pinout9-pin Noval
Era1953
RarityCommon
