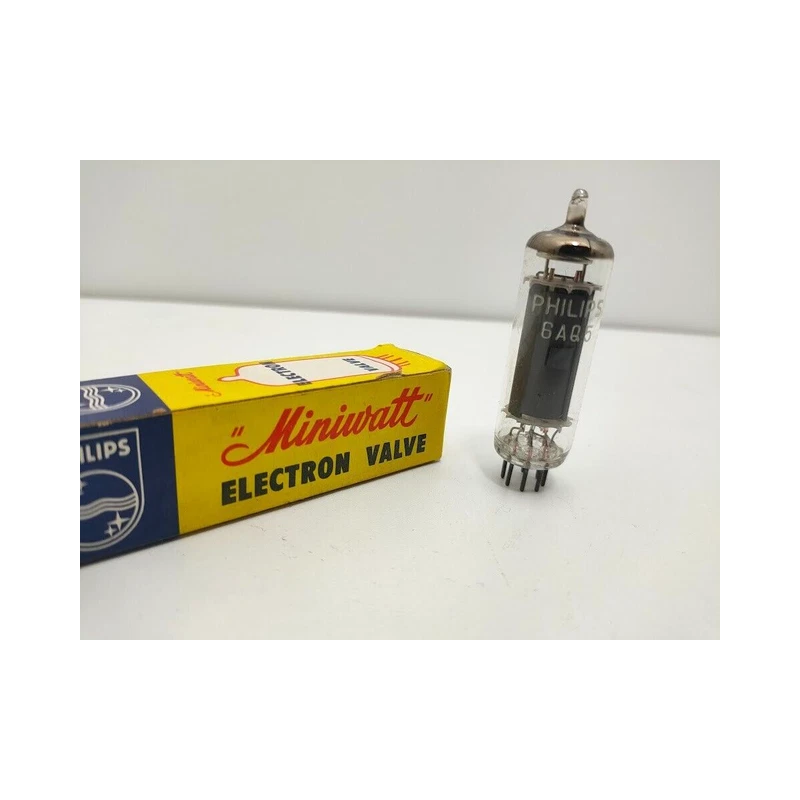

6AQ5
Pentode · IHT · 7-pin Miniature · 1950
“Compact power.”
Power pentode delivering up to 12W in pentode, UL, or triode mode
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER30%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6AQ5 is a indirectly-heated pentode from RCA, introduced around 1950. Commonly used in power applications. Compact power.
APPLICATIONS
Power output
Small PA amplifiersAmpeg Jet J-12
VS EL90
Pd 0%Full comparison →
HISTORY
Introduced1950ManufacturerRCAEquivalentsEL90, 6005
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.45A
Max Plate Voltage275V
Max Power12W
Sensitivity4.1 mA/V
Gain Factor—
Internal Impedance—
Pinout7-pin Miniature
Era1950
RarityCommon
